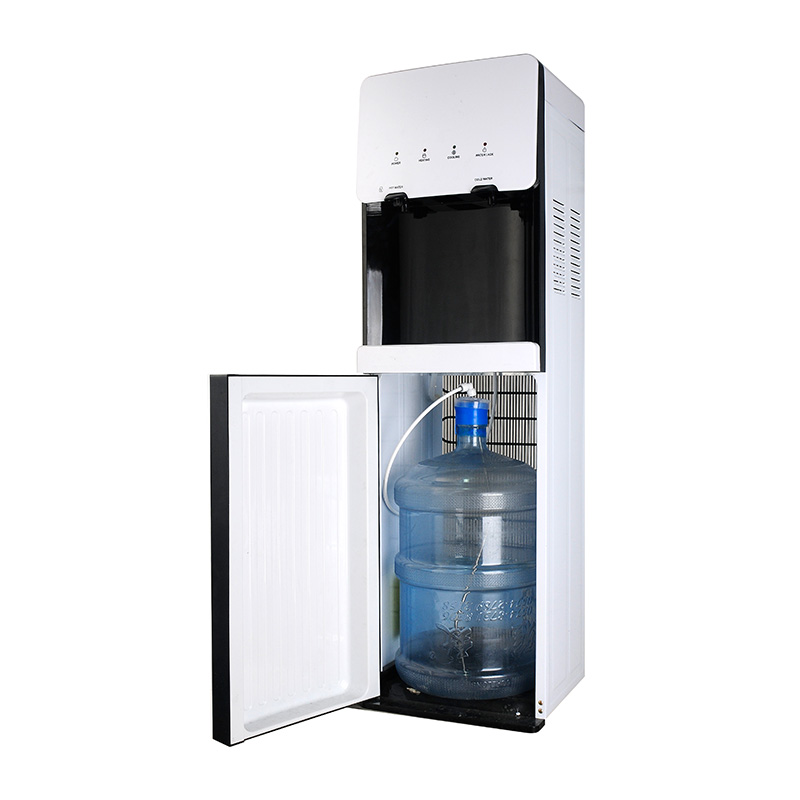

| Specification for bottom loading model YLRS-V3 | |
| MODEL NO. | YLRS-V3(2 taps/3 taps) |
| Product Feature | Hot&Cold, Floor Standing Water Dispenser, Bottom loading bottles, without child-lock for hot water |
| Product Specification | SUS 304 Tanks, Food grand silicon gel tubes |
| Power Supply | AC 220-240V/50-60HZ |
| Water level control | Good quality float to control the water level inside cold tank |
| Pump | Good quality for the pump, to work when the water fills into the cold tank |
| Power Consumption | Cold: 90W, Hot: 500W/550W |
| Cooling System | Compressor cooling |
| Refrigerant | R134A |
| Temperature Range | 6-10℃ |
| Temperature Control | Thermostat(6") |
| Volume of Tank | 3.2L |
| Heater Type | Inner Heater |
| Tank Type | Weld Tank |
| Temp Range | 85-95℃ |
| Temp Control | Bimetal Thermostat |
| Volume of Tank | 1 Liter |
| Colours Available | White&Black decoration |
| Product Weight | 14KGS |
| Product Boxed Weight | 15KGS |
| Product Dimensions | 32X31X106CM |
| Product Boxed Dimension | 34X32.5X110CM |
| Loading Quantity | 550PCS/40HQ |
